* Maximize storage performance with up to 10 NVMe drives or 12 2.5” drives.
* Scale compute resources with 2nd
Sign In | Join Free | My howtoaddlikebutton.com |
|
Model Number : PowerEdge R640
Place of Origin : Fujian, China
MOQ : 1 unit
Price : $2,500.00/pieces 2-4 pieces
Private Mold : NO
Products Status : Stock
Type : Rack
Processor Main Frequency : 2.1GHz
Processor Type : Intel Xeon
Item | Used PowerEdge R640 SQL Win 2019 Intel XEON CPU PC Computer 1u Mini Rack Server |
Type | 1U Dual Socket Rack Server |
Processor | Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor |
Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TBmax Up to 12 NVDIMM, 192 GB Max Up to 12 Intel Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
Storage Controllers | Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only) External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID) Software RAID: S140 Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240 GB, 480 GB Internal Dual SD Module |
Drive Bays | Front drive bays: 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB 10 NVMe drives max 64TB, 4 x 3.5” SAS/SATA HDD max 64TB Rear drive bays: 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW |
Power Supply | 495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy |
![]() |

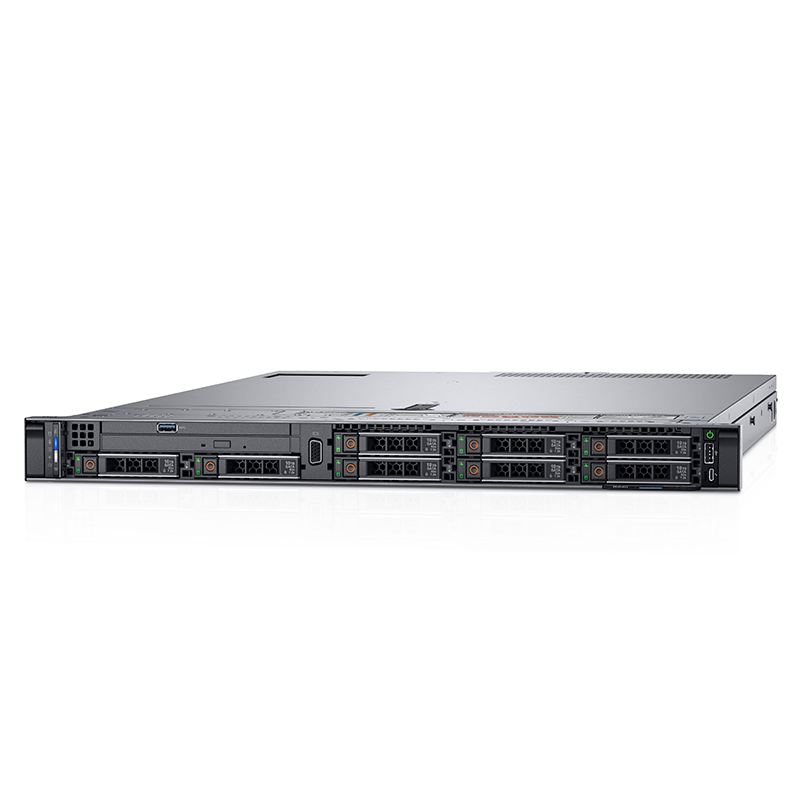

PowerEdge R640 SQL Win 2019 Intel Xeon CPU 1u Mini Rack Server with Private Mold Images |
